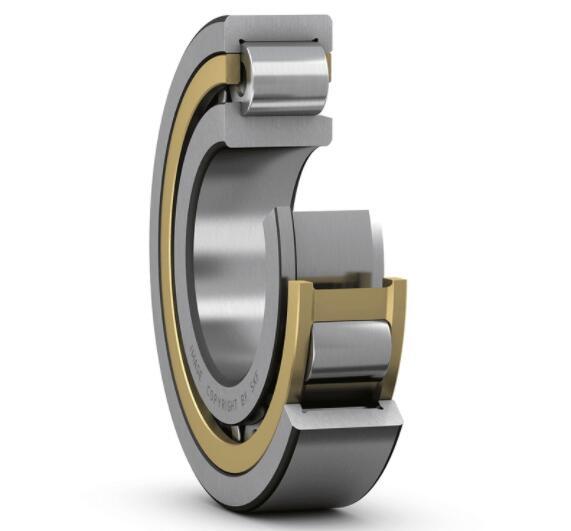

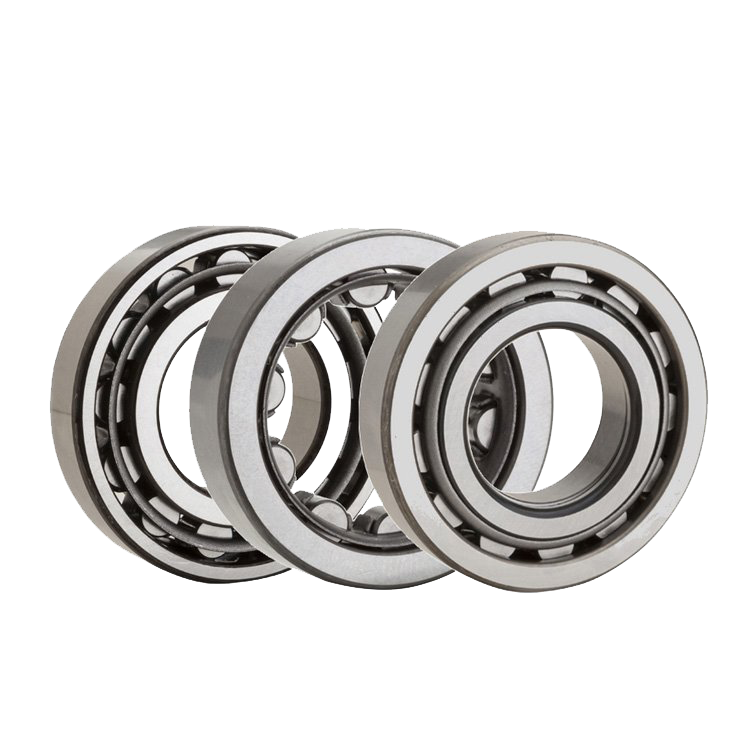

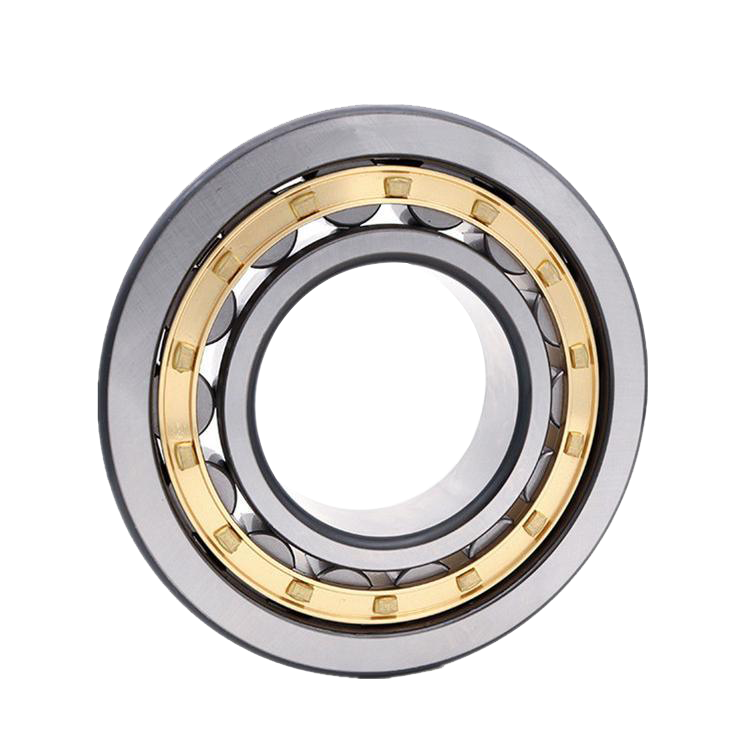

As the name implies, these Bearings have Cylindrical Rollers as Rolling Elements. They form a line contactwith the Raceway of lnner and Outer Ring. KMTT Cylindrical Roller Bearings are produced in many variants,and can also be made as per special dimensional requirements, but within some basic design limitations.
capable of carrying high radial loads but limited axial loads
suitable for medium to high load applications
suitable for low êt medium speed applications
suitable for applications requiring good running accuracy at higher radial loads
Single Row type - N, NF, NJ, NU E NUP
Double Row type - NN £t NNU (Details available on request)
higher load capacity - E type
with Snap Ring groove
with Snap Ring groove and Snap Ring
with C2,CN £t C3 radial clearance
standard precision grade Po êt higher precision grade P6 £t P5
pressed Steel, machined Brass or Steel Cage
Straight or Taper bore
Rolling Contact Bearings can be categorized in many ways. One is based on the end use of Bearing e.g, Agricultural, Automotive, Industral ete. However, considering technical parameters & construction, there are two ways to classify Rolling Contact Bearings.
